Genuine replacement parts and accessories for Huedrift DTF printers and ovens — sourced from the same factory that builds the machines.

Printer Parts ↓ Oven Parts ↓ Accessories ↓ FAQ ↓

DTF Parts & Accessories

Keep Your Printer Running —
Same Factory, Genuine Parts

Every part in this category comes from the same factory that manufactures Huedrift printers. No guesswork on compatibility, no third-party substitutes — just the right part for your machine.

Huedrift One compatible Huedrift Pro compatible Huedrift Pro Max compatible Free US shipping

Printer Parts

DTF Printer Replacement Parts

Circuit boards, ink system components, and internal parts for Huedrift DTF printers. Most items have model-specific variants — select your printer at checkout. Replacing specific parts on a regular schedule helps keep your printer running smoothly and prevents small issues from becoming costly downtime.

🔌

Circuit Boards

Control, power, printhead driver, and motherboard replacements. The most common parts needed after electrical issues or firmware failure.

Control

Printer Control Board

Manages print head movement, media feed, and communication between the printer and RIP software. Required when the printer stops responding to commands.

$179 – $259
View Options →
Printhead

Printhead Driver Board

Directly controls the Epson printhead firing sequence. Needed when nozzle check patterns show irregular misfires that aren't resolved by cleaning cycles.

$599
View Options →
Power

Printer Power Board

Regulates and distributes power to all printer components. Replace when the printer fails to power on or shows unstable voltage-related errors.

$109 – $1,800
View Options →
Main Board

Printer Motherboard

The central processing board that coordinates all printer functions. A full motherboard replacement is typically the last resort after other board replacements fail.

$159 – $299
View Options →
Startup

Printer Startup Button Board

Houses the power button and status indicator LEDs. Replace when the printer won't respond to the power button or indicators show incorrect status.

$119
View Options →
🖨️

Ink System Components

Tanks, tubes, cartridges, and pumps that keep ink flowing reliably from reservoir to printhead — critical for consistent print quality.

Tank

Printer Ink Tank

The main ink reservoir that feeds the print carriage. Replace when tanks crack, seal failure causes air ingestion, or ink flow becomes inconsistent.

$49
Add to Cart →
Carriage

Printer Ink Carriage

Holds the printhead and moves it across the media during printing. Replace when carriage movement becomes erratic, noisy, or causes banding in prints.

$99
Add to Cart →
Tubes

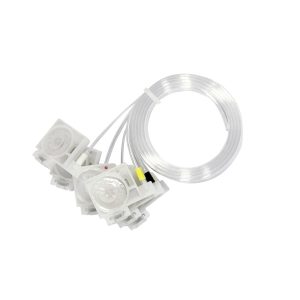

Ink Sac Tubes with Cartridges

6×120cm ink sac tube set with cartridges for continuous ink supply. Replace when tubes show kinking, air bubbles, or ink starvation at the printhead.

$69.90
View Options →

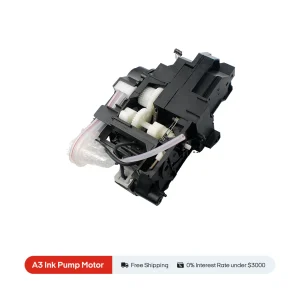

Pump

White Ink Circulation Pump

Keeps white ink in constant circulation to prevent pigment settling and nozzle clogging — the most common cause of white ink print failures in DTF printing.

See product
View Options →
Cartridges

Printer Cartridges (12 PCS)

Full set of replacement cartridges for Huedrift DTF printers. Maintaining a spare set on hand minimises downtime when cartridges run dry mid-production.

See product
View More →
💧

Printhead Care

Protect your Epson printhead — the most expensive component in your DTF printer — with the right maintenance accessories.

Protection

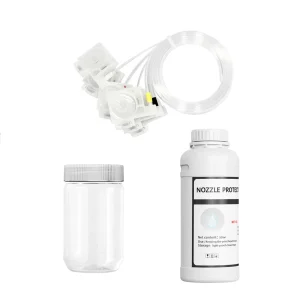

Printhead Moisturizing Device

Keeps the Epson printhead capped and humidified during idle periods. DTF white ink dries within hours if the head is left uncapped — this device prevents clogging between print sessions and is especially critical if you don't print every day.

$149
View Options →
Printhead tip: The Epson R1390 and L1800 printheads used in Huedrift printers are the single most expensive component to replace. A $149 moisturizing device is the most cost-effective way to extend printhead life — especially for studios that don't print daily. Run a nozzle check at the start of each session to catch clogging early.

Oven Parts

Replacement Parts for the Huedrift DTF Oven

Keep your curing oven running at the precise temperatures that DTF powder adhesion requires. Both parts are direct replacements for the Huedrift Oven for DTF Printer.

Temperature

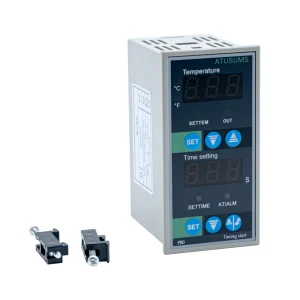

Oven Temperature Controller

The digital controller that maintains precise curing temperature (320–340°F / 160–170°C). Replace when the oven shows temperature errors, overheating, or inconsistent heat that causes under-cured or over-cured powder adhesion.

$59
Add to Cart →
Heating

Oven Heating Plate

The primary heating element inside the curing oven. Replace when heat output is uneven across the film surface — visible as inconsistent powder bonding or areas where the transfer peels after pressing.

$199
Add to Cart →

Accessories

Software & Workflow Accessories

Add-ons that keep your DTF workflow running smoothly — from RIP software licensing to film handling.

Software

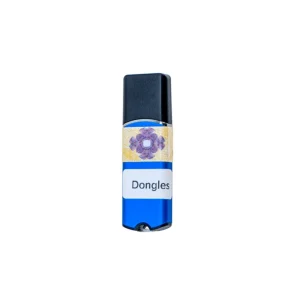

USB Dongle for RIP V2.3+

Hardware license key required to activate RIP software version 2.3 or later. Without this dongle, the RIP software will not run. Keep a backup noted — if this is lost, printing stops until a replacement arrives.

$109
Add to Cart →
Film Handling

Film Holder for 13" DTF Roll Film

Mounts a 13" DTF roll film onto the printer for continuous feeding without manual re-loading between sheets. Reduces handling time and keeps film tension consistent during printing.

$99.99
View More →
Regular part replacement keeps your DTF printer running smoothly. Wear parts such as ink tubes, cartridges, and the printhead moisturizing device should be inspected periodically and replaced before they cause print quality issues or unplanned downtime.

Not Sure Which Part You Need?

Contact Huedrift support with your printer model, serial number, and a description of the issue. We'll identify the correct part before you order — response within 24 hours.

Contact Support → View Warranty Policy

Common Questions

Parts & Accessories FAQ

Are these parts compatible with all Huedrift printers?
Most parts have model-specific variants — select your printer model (Huedrift One, Pro, or Pro Max) at the product page to ensure you receive the correct version. If you're unsure which variant fits your machine, contact our support team with your printer model and serial number before ordering. Incorrect board variants cannot always be returned once installed.
How do I know which board my printer needs?
Check the label on the existing board inside your printer — it will show a model or revision number. You can also contact Huedrift support with a photo of the faulty board and your printer's serial number, and we'll confirm the correct replacement before you order. Most boards are listed with their compatible printer models at checkout.
What does the printhead moisturizing device do?
The printhead moisturizing device keeps the Epson printhead capped and humid when the printer is idle. DTF white ink has a high pigment concentration and dries quickly in open air — leaving the printhead uncapped for more than a few hours can cause irreversible clogging. This device is especially important for studios that don't print every day. At $149 it's far cheaper than a printhead replacement.
What is the RIP USB Dongle used for?
The USB Dongle is a hardware license key required to run RIP software version 2.3 or later. Without it plugged in, the RIP software will not activate. If your dongle is lost or physically damaged, you'll need a replacement to continue printing — there is no software-only alternative. Keep it in a safe, consistent location and don't leave it plugged in when transporting the printer.
Can I install these parts myself or do I need a technician?
Circuit board replacements (control board, power board, motherboard) require basic technical comfort — disconnecting ribbon cables and connectors without damaging them. If you're not comfortable working inside the printer, contact Huedrift support first. Ink system parts (tanks, tubes, cartridges) are generally user-replaceable. When in doubt, our support team can walk you through the process via email or video call.

Also From Huedrift

Complete Your Setup

Parts to keep your machine running — and everything else to keep it printing.

DTF Supplies

Ink, film, and powder for daily production. Matched to Epson R1390 and L1800 printheads. ~$5.80 supply cost per A3 shirt print.

Shop DTF Supplies →

Extended Warranty

Extend your Huedrift printer coverage beyond the standard warranty period. Covers parts and labor — peace of mind for high-volume studios.

View Warranty Options →
