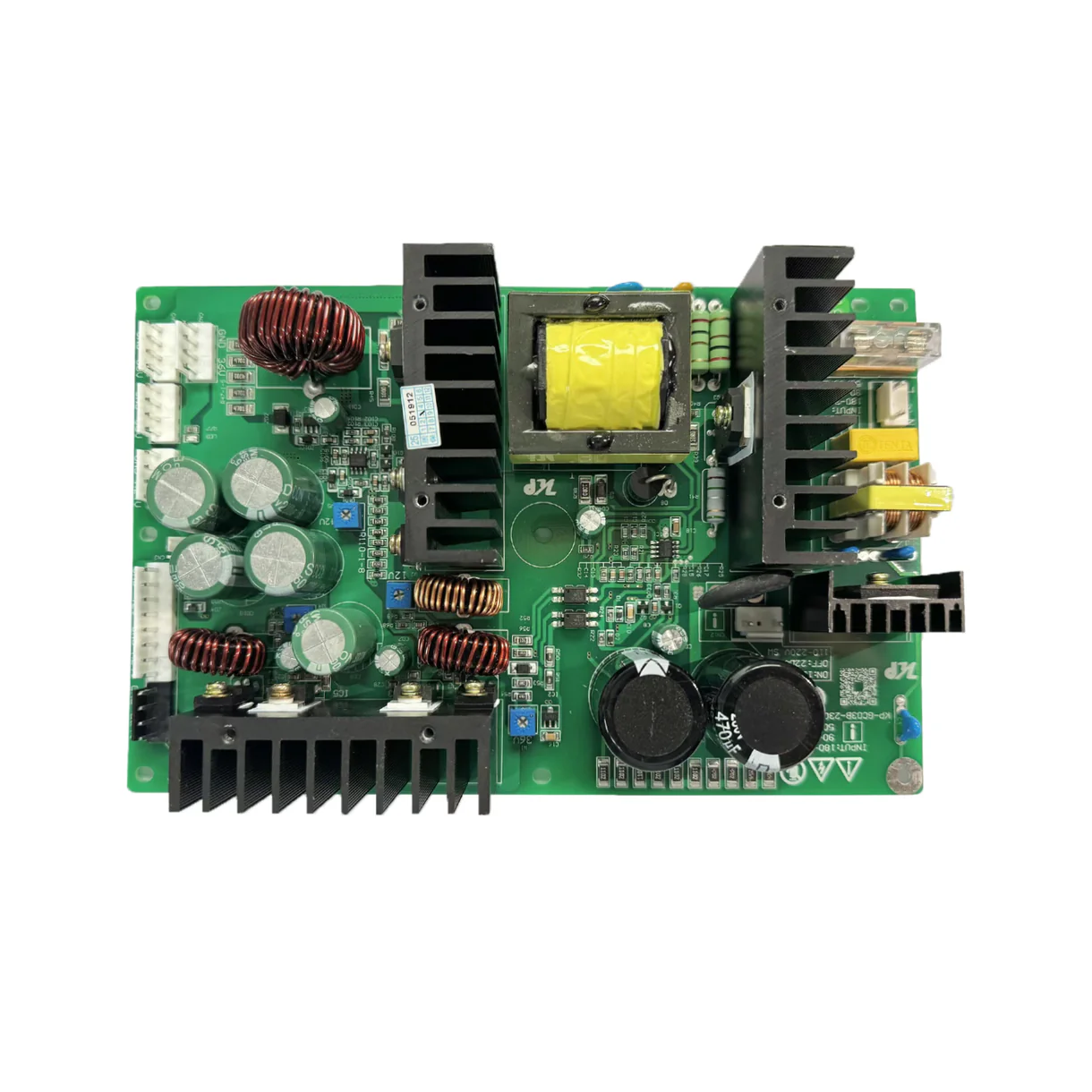

Printer Power Board

Overview：

The power board is responsible for converting and distributing electrical power within the printer. It takes in standard AC mains voltage (220V or 110V) and converts it into multiple low-voltage DC outputs, such as +5V, +24V, and +42V, depending on the requirements of different internal modules. This power board ensures that each component receives the correct voltage level for stable, safe, and efficient operation.

Features:

• AC to DC Conversion – Converts high-voltage AC input (220V/110V) into regulated low-voltage DC outputs tailored to the printer’s internal circuitry.
• Multi-Voltage Output – Supplies multiple DC voltage levels (e.g., +5V, +24V, +42V) to support various functional modules such as logic boards, motors, and sensors.
• Stable Power Distribution – Ensures consistent and reliable power delivery to all subsystems, preventing voltage drops and power-related malfunctions.
