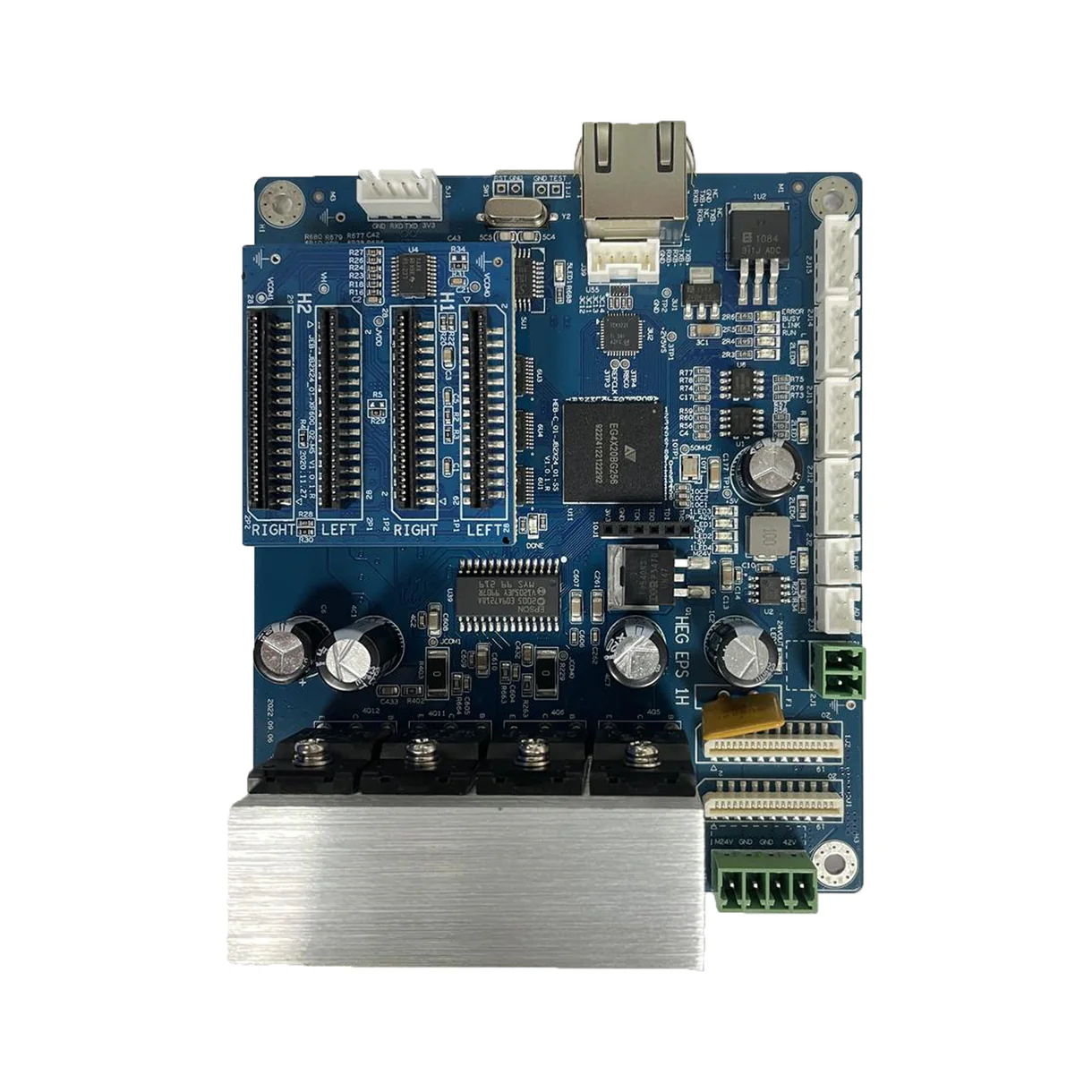

Printhead Driver Board

Overview：

The printhead driver board is specifically designed to control the inkjet printhead. Its primary function is to convert print signals sent from the mainboard into precise actuation commands for the printhead. By generating high-precision voltage and current signals, the board directly drives the piezoelectric elements inside the nozzles, enabling accurate and controlled ink ejection for high-resolution printing.

Features:

• Dedicated Printhead Control
  Engineered exclusively to drive the printhead by interpreting and executing print signals from the main control board.
• Signal Conversion
  Converts digital printing instructions into analog waveforms that control individual nozzle operations.
• High-Precision Voltage and Current Output
  Generates finely tuned electrical signals to activate piezoelectric actuators within the printhead, ensuring accurate ink droplet formation.
• Stable and Accurate Drive Signals
  Maintains signal integrity to minimize distortion and optimize printing precision.
