Built for Custom Socks.
Engineered to Perform.
Six purpose-built technologies, each solving a real bottleneck in custom sock production — so you can print faster, smarter, and more profitably.
360° Spiral Printing
Socks aren't flat — they're cylinders. Every other printing method fights that geometry. The Y450's spiral system was engineered around it: the printhead travels in a continuous helical path around the sock form, depositing ink from cuff to toe without a single gap, seam, or dead zone.
No repositioning. No pre-treatment. No missed patches. What you design on screen is exactly what comes off the drum.
- Dead zones at seams and edges
- Manual repositioning required
- 500+ unit factory minimums
- 2–3 week lead times
- Zero dead zones, full coverage
- Fully automated, one placement
- 1 pair minimum, any design
- Same-day production
Epson i1600 Print Head
The i1600 uses VSDT — Variable Size Droplet Technology — giving it precise control over every single ejected droplet. Smaller droplets for fine highlights, larger for deep fills. The result is noticeably richer colour, smoother gradients, and finer edge detail than any fixed-droplet print head can achieve.
Industrial build quality means 12–24 months of reliable daily operation — long past the point where most consumer-grade heads would need replacing.
Why it matters on elastic fabric: Socks stretch up to 40% in use. The i1600's dense, penetrating ink deposit holds colour saturation even under full extension — cheaper heads produce dull, cracked prints after a few wears.
THK Single Guide Rail
THK is the global standard for precision linear motion in industrial robotics, semiconductor manufacturing, and medical equipment. The Y450 uses a THK single guide rail as its primary carriage axis — delivering sub-millimetre positional accuracy on every pass, across hours of continuous production.
Single-rail design also means fewer moving parts, lower energy consumption, and less mechanical wear compared to dual-rail alternatives — translating directly into lower long-term maintenance cost.
Mobile App Control
Upload a design from your phone and print starts — no PC, no RIP software, no learning curve. The app handles colour management, size calibration, and job queuing. Most operators are printing finished socks within 30 minutes of first setup.
Touch Screen Control
A full-colour touchscreen replaces the traditional multi-button panel. Every parameter — speed, temperature, height, ink density — is reachable in two taps. No memorising button sequences, no manual consultations mid-run.
Z-Axis Height Adjustment
The printhead lifts and lowers across a 5–20 mm range to match the exact thickness profile of each material on the drum — whether you're running thin athletic socks, thick knit styles, wrist guards, or arm sleeves. Consistent ink-to-surface distance means consistent quality across every SKU you carry.
Lower Costs.
Less Downtime.
Every machine decision is a long-term cost decision. The Y450 is designed to minimise both maintenance time and per-unit running cost — so your margins stay healthy as volume grows.
Single-Head Reliability
One precision printhead instead of two means fewer failure points, simpler calibration, and lower replacement cost. The Epson i1600's industrial build is rated for 12–24 months of continuous daily operation — significantly longer than consumer-grade alternatives.
No White Ink Clogging
DTF sock printing uses standard CMYK disperse inks — not white ink. This eliminates the single biggest maintenance headache in conventional DTF flatbed printing. No daily agitation routines, no white ink settling, no blocked nozzles from pigment buildup.
Low Ink Cost Per Pair
Disperse ink consumption is measured in millilitres per pair. At a conservative 15 pairs per day, consumable cost (ink + film + powder) runs well under $2 per pair — leaving $13+ gross profit at a modest $15 retail price before any overhead.
Idle-Safe Design
Going on holiday? Slow week? The Y450's printhead can remain loaded and idle for up to 72 hours without manual cleaning. For longer downtime, a standard nozzle protection flush takes under 3 minutes — no specialised tools, no technician visit required.
A Full Pair in Under 4 Minutes
The Y450 workflow is intentionally minimal. No pre-treatment. No operator skill barrier. Just design, print, cure.

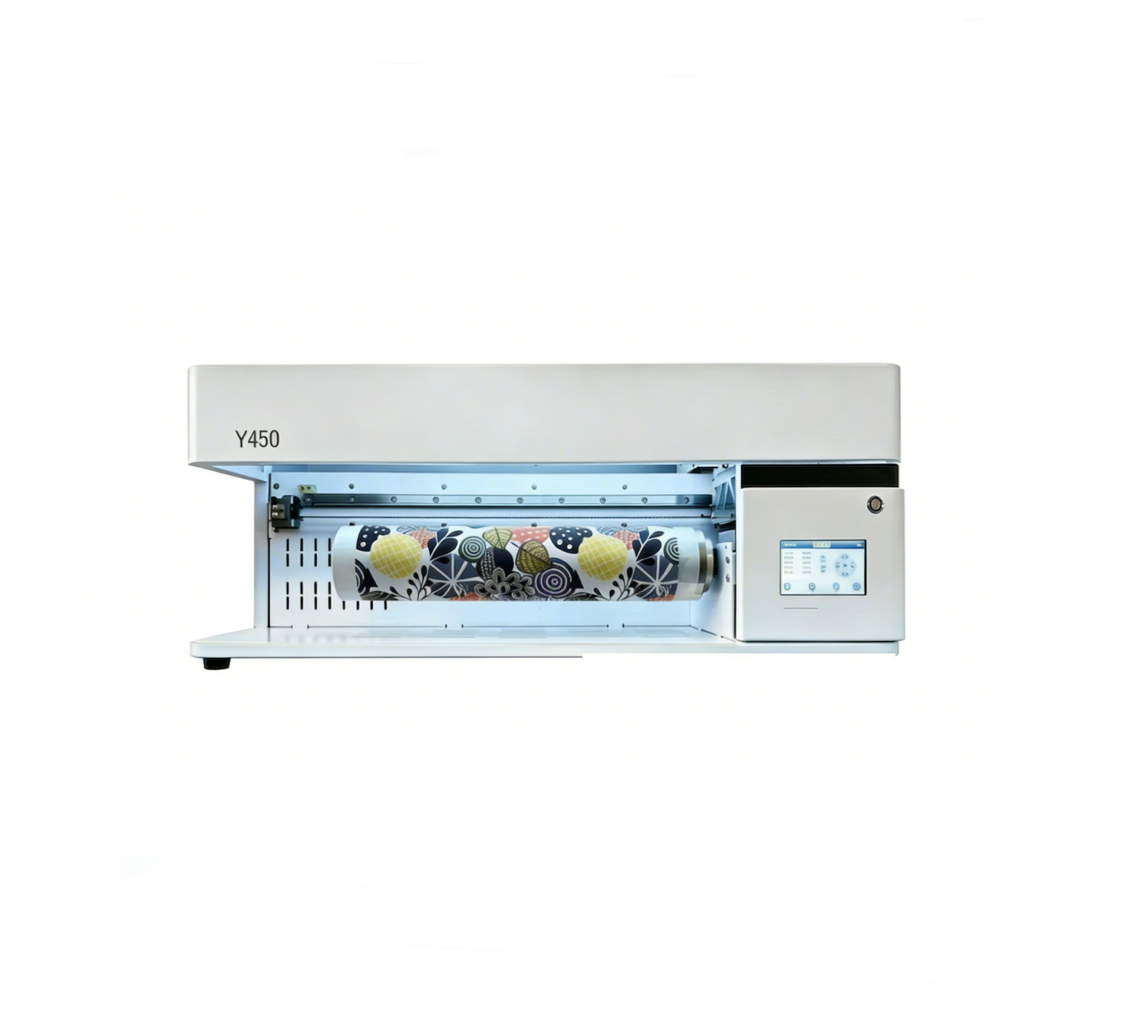

Y450 at a Glance
| Specification | Value |
|---|---|
| Print Technology | 360° Spiral DTF |
| Print Head | Epson i1600 (VSDT) |
| Resolution | 360 × 1200 DPI |
| Output Speed | ≈ 30 pairs / hour |
| Minimum Order | 1 pair |
| Z-Axis Range | 5 – 20 mm |
| Ink System | C, M, Y, K · M and Y swappable for fluorescent |
| Curing Temp | 180 °C · 2 minutes |
| Compatible Materials | Polyester socks, arm sleeves, wrist guards |
| Pre-treatment | None required |
| Control | Mobile App (iOS / Android) + Touchscreen |
| Guide Rail | THK single guide rail |
| Warranty | 1 year full hardware warranty |
The Materials Behind Every Print
Three precision-formulated consumables, each engineered to work seamlessly with the Y450 and the demands of elastic fabric printing. Use other brands at your own risk — the system is calibrated around these.
DTF PET Film
The carrier layer that holds your printed design until it's heat-transferred onto fabric. Engineered for sock-diameter drums — the film maintains dimensional stability under the rotational tension of spiral printing, so edges stay crisp all the way around.
- High-precision ink absorption coating
- Dimensionally stable under drum tension
- Fine texture · breathable · vibrant colour transfer
- Compatible with socks, arm sleeves and more
High-Temp Disperse Ink
Formulated specifically for the 180 °C disperse-dye process used with polyester fibres. Colours penetrate the fabric structure at a molecular level — not just sitting on the surface — producing wash-fast prints that won't crack, peel, or fade under normal use and washing.
- Molecular-level dye penetration — no surface coating
- Wash-fast, stretch-proof, fade-resistant
- M and Y channels swappable for fluorescent red and yellow
DTF Hot Melt Adhesive Powder
Applied over the wet ink layer before curing, the hot melt powder creates the adhesive bond between the print and the fabric during the 180 °C heat press stage. Unlike DTG printing, no pre-treatment of the garment is needed — the powder handles adhesion chemistry entirely.
- No pre-treatment of garment required
- Activates at 180 °C · bonds in 2 minutes
- Gradual-dry formulation · easy cold peel
- Optimised for elastic polyester fabrics
- Soft hand-feel — print flexes with the fabric
DTG vs DTF: DTG requires chemical pre-treatment sprayed onto each garment before printing — adding time, cost, and inconsistency. DTF powder eliminates that step entirely. Load, print, cure, done.
Sock Printer ROI Calculator
How fast does your sock printer pay off?
Enter your monthly order volume and sale price per pair to see your exact profit, break-even timeline, and 12-month cumulative return.
How fast does your
sock printer pay off?
Ink est. $0.40/pair. Output: 4-sock oven @ 2 min/cycle @ 180°C. Actual results vary.
View full specs →
It completely replaced my previous manual printing process.I didn’t expect such consistent results on every batch.
This sock printer made it possible for me to start my own custom sock brand from home.It helps me keep up with weekend order spikes.
Much faster than flat printing methods we used before.It improved our workflow efficiency significantly.
Production is finally scalable. I can handle more orders without outsourcing.We run it daily and it holds up well for small-scale production
